Creating Blueprints

Create blueprints from scratch or from an existing production line.

Creating from an Existing Production Line

To create a blueprint based on a production line you've already built:

1. Navigate to the production line you want to use as a template

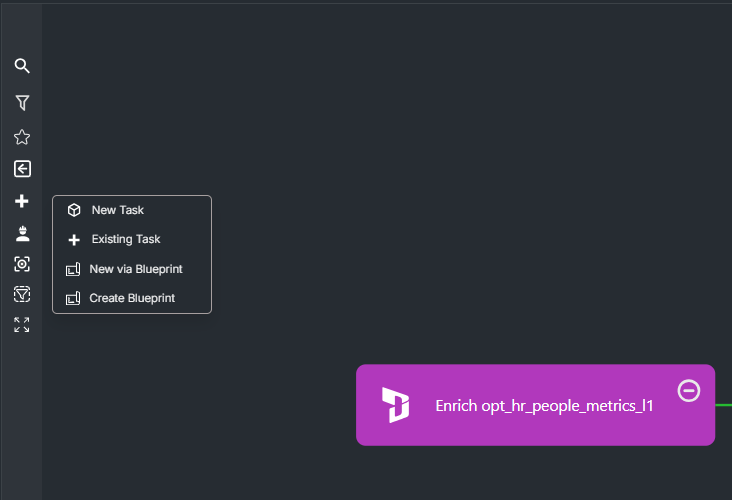

2. On the sidebar, hover over the plus icon and select the Create Blueprint option

3. The form will get populated with tasks, task groups and graph node groups that are part of the production line
4. Adjust the template and add variables as needed
5. Click Save

Creating from Scratch

1. Navigate to Build > Blueprints
2. Click the create button in the top right hand corner
3. Fill in the blueprint form

Blueprint Form Fields

Basic Information

Field	Description	Required
Code	Unique identifier. Letters, numbers, hyphens, and underscores only. Cannot be changed after creation.	Yes
Name	Display name shown in the blueprint list	Yes
Description	Longer description of what the blueprint does	No
Thumbnail URL	URL to an image displayed on the blueprint card	No

Task Template

The task template defines the tasks that get created when the blueprint is applied. Each task entry includes:

Property	Description
Code	Unique task identifier within the blueprint
Name	Task display name
Activity Code	Which activity the task runs
Task Group Code	Parent task group (if any)
Priority	Task execution priority
Task Config	Activity-specific configuration (JSON)
State Config	State-specific settings (JSON)
Notebook Template Path	Databricks notebook path for notebook-based tasks
Concurrency Threshold Code	Controls parallel execution limits
Upstream Dependencies	Other tasks this task depends on
Tags	Task-level labels
Active	Whether the task is active

Task Dependencies

Tasks within a blueprint can depend on other tasks. Each dependency specifies:

• Depends Upon Task Code — the task that must run first
• Dependency Condition — when to proceed: SUCCEEDED, COMPLETED, or FAILED

Task Group Template

Task group templates define shared configuration for groups of related tasks:

Property	Description
Code	Unique group identifier
Name	Group display name
Description	What the group contains
Concurrency Threshold Code	Parallel execution limit for the group
Task Group Config	Shared configuration (JSON)

Variables

Define variables to make the blueprint configurable at apply time. Each variable has:

Property	Description
Name	Variable identifier
Type	Input type: string, number, boolean, enum, databricks_path, or connection
Type Filter	Additional filtering for the variable type
Title	Label shown to the user
Description	Help text for the variable
Required	Whether the user must provide a value
Pattern	Regex pattern for validation
Values	Predefined options (for enum type)
Default Value	Pre-filled value

Graph Node Groups

Graph node groups control how tasks are visually grouped on the production line graph. Each group has a code, name, and a list of member tasks or nested groups.

Editing a Blueprint

1. Open the blueprint from Build > Blueprints
2. Select the Edit tab
3. Modify any fields
4. Click Save

note

The Code field cannot be changed after creation. Protected (default) blueprints cannot be edited.
